High Speed Double Laying Up Machine JLY-1250 Touch Screen PLC Controlled

Name: High Speed Double Laying Up Machine JLY1250 Touch Screen PLC Controlled
Brand: Beyde
Price: 1 USD

Brand Name : Beyde

Model Number : 1250-3

Place of Origin : Hejian,China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 120 Set/Year

Delivery Time : 70-150 Days after receive deposit

Packaging Details : Container loading with safety packing

Price : Negotiate

Take-up drum dimension : 3150mm

Warranty : 12 Months

loading capacity : 15000kg

Usage : Stranding

Contact Now

JLY-1250 High speed double Cable laying Machine(bunching machine/cabling machine)

Product Description

CLY1000/1250/1600 Cradle Type Laying Up Machine, Electric Conductor Machine

The machine is used for stranding the MV or HV power cables, split conductors for HV cables, with steel-wire or steel-tape armoring and Cu-wire or Cu- tape screening..
Main Features
1.The whole machine is controlled by PLC and touch screen. The separate drive motors start and run synchronically under highly automatic control, with easy and reliable operation.
2.All the motors are frequency convertible motors with converters for speed regulation, easy in maintenance.
3.The take-up pitch is adjustable online. The parameters are changed on the touch screen.
Main Technical Data

Take-up drum dimension	Drum width	loading capacity	Twister maximum speed rotation
3150mm	2300mm	15000kg	35rpm

Cradle Type Laying Up machine
It can produce every kind of cable with large cross-section,many core wires.And also telephone cables,control cables,mining cables,it can match armoring machine as customer’s demand.
The technical datas of : Underground cable laying up machine

	CL-1+6/ 630 CL-1+1+3/630	CL-1+6/ 800 CL-1+1+3 /800	CL-1+6/ 1000 CL-1+1+3/1000	CL-1+6/ 1250 CL-1+1+3/1250	CL-1+1+3/1600
Cross-section dia(mm²)	2-25	6-50	25-185	25-185	35-300
Outer dia (mm)	35	35	63	63	100
Stranding pitch(mm)	100-1500	100-1500	288-3200	288-3200	315-5650
Pay-off bobbin dia(mm)	630	800	1000	1250	1600
Host power(kw)	11	15	18.5	22	45
Rotating speed(r/min)	10-40	10-40	10-20	10-20	10-12

Product details

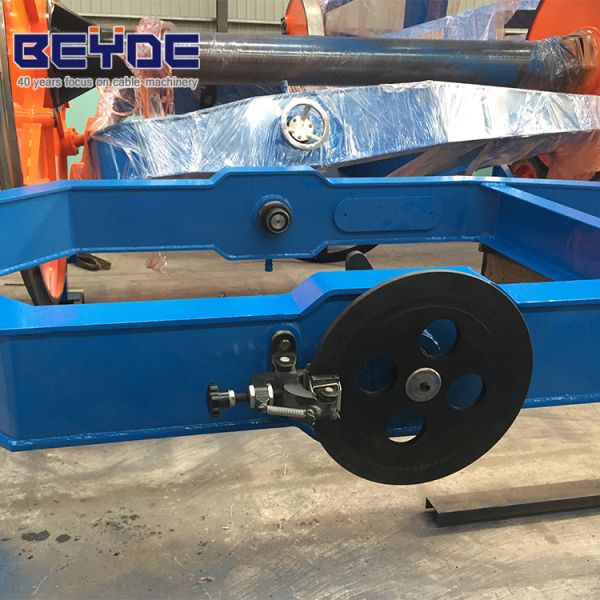

High Speed Double Laying Up Machine JLY-1250 Touch Screen PLC Controlled

FAQ

Q: I just start planning into this industry, I don't know how to plan?

A : Every salesman of us can tell you what the first step on the equipment ,workshop how to plan,how to save the costs and so on.

Q: How can i install my machine when it arrives?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q: Which industries are mainly targeted at HONGFA's equipment?
A : Wire and cable, enameled wire, cutting line, ACCC cable and new energy cable etc.

Packaging & Shipping

Here is our machinery packing and shipping,we usually transport it by shipping,we also have small auxiliary and accessories,can send by airplane and express etc.
We usually use standard size container to pack machinery,sometime our customers don't need it,so we follow customer's requirements.
